Automatic Side Sealing Machine (up to 60 cycles/min)

The Automatic Side Sealing Machine guarantees extremely stable side seams for all films. The film is processed by the three sided sealing of center folded films (fine shrink film or PE fine shrink film). The use of our film sealing machines also enables the user to pack over-sized products. The fast conversion to other product sizes guarantees an efficient and cost-effective workflow. The vertical pillow bag machine impresses with its performance and innovative design at highest level. A great advantage of our APSS line is its automatic product centering system. With this function, the machine automatically adjusts to different container sizes and feeds them centrally. As the second special feature, the permanently heated side sealing unit enables the user to pack also over-sized products.


Requests
Data Sheet

Technical Details

  • cross-sealing and permanent side sealing
  • simple operation due to digital program selection with individually storable programs
  • servo-controlled sealing stamp
  • discrete temperature control for the sealing knifes (lengthwise/crosswise)
  • bundlings of one or more products possible
  • automatic winding of film waste
  • permanently heated and Teflon-coated sealing knifes (kit)

Automatic Side Sealing Machine - Packaging of Soap

Automatic Side Sealing Machine: Bundling of Mascara

Example of application: Bundling of perfum boxes

Example of application: Bundling of gift ribbon rolls

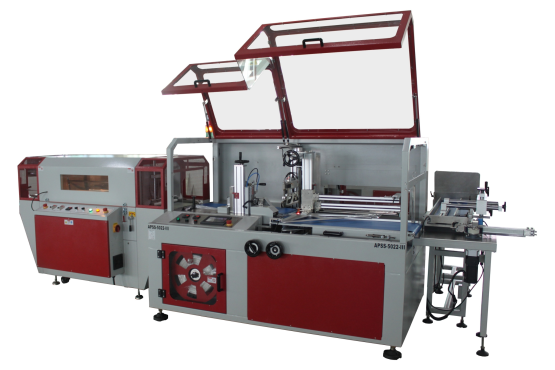

Side Sealing Machine with Shrink Tunnel: Packaging of Toast

Automatic Side Sealing Machine: Shrinking of canvas

Different Models:

  • DEAPSS-4015
    ModelDEAPSS-4015
    Usable films (center folded):POF / PP / PE
    Maximum film thickness:50my
    End-sealing mechanism:pneumatic
    Sealing knife width (crosswise):  400 mm
    Maximum product heigth:150 mm
    Maximum format width (W + H):350 mm*
    Maximum reel size (L x Ø):500 x Ø 300 mm
    Machine size (L x W x H):1582 x 1500 x 1410 mm
    Conveyor belt speed:35 m / minute
    Connected load (maximum):2,5 kW
    Machine weight (approx.):385 kg
    Sealing process: up to 40 pieces / minute**
  • DEAPSS-5022
    ModelDEAPSS-5022
    Usable films (center folded):POF / PP / PE
    Maximum film thickness:50 my
    End-sealing mechanism:servo
    Sealing knife width (crosswise):500 mm
    Maximum product height:220 mm
    Maximum format width (W + H):450 mm*
    Maximum reel size (L x Ø):650 x Ø 300 mm
    Machine size (L x W x H):2103 x 1653 x 1410 mm
    Conveyor belt speed:35 m / minute
    Connected load (maximum)3,0 kW
    Machine weight (approx.):410 kg
    Sealing process:up to 60 pieces / minute**
  • DEAPSS-7522
    ModelDEAPSS-7522
    Usable films (center folded):POF / PP / PE
    Maximum film thickness: 50 my
    End-sealing mechanism:servo
    Sealing knife width (crosswise):750 mm
    Maximum product height:220 mm
    Maximum format width (W + H):700 mm*
    Maximum reel size (L x Ø):850 x Ø 300 mm
    Machine size (L x W x H):2400 x 2153 x 1510 mm
    Conveyor belt speed:35 m / minute
    Connected load (maximum):4,0 kW
    Machine weight (approx.):610 kg
    Sealing process:up to 40 pieces / minute **
  • DEAPSS-10022
    ModelDEAPSS-10022
    Usable films (center folded):POF / PP / PE
    Maximum film thickness:50 my
    End-sealing mechanism:servo
    Sealing knife width (crosswise):1000 mm
    Maximum product height:220 mm
    Maximum format width (W + H):950 mm*
    Maximum reel size (L x Ø):1150 x Ø 300 mm
    Machine size (L x W x H):2250 x 2350 x 1820 mm
    Conveyor belt speed: 35 m / minute
    Connected load (maximum):5,0 kW
    Machine weight (approx.):850 kg
    Sealing process:up to 30 pieces / minute **

 *It is not possible to combine all maximum dimensions

**The output quantities per minute are averages depending on film type, thickness, product dimension and machine handling.

Convince yourself of our Side Sealing Machines and make an appointment today with our showroom or with one of our reference customers at +49 - 2235-79479-0 or at info_at_alphapack.de.

Additional Options

  • Film folding device: Longer production periods due to the use of flat films, increase of production capacities due to a higher amount of running meters, faster retooling times, simple application for printed films
  • Label / print unit: Barcode or label printing, upstream or downstream
  • Stainless steel construction: Machine components made of stainless steel for direct contact with food
  • Conveyor belt kissing function: Particularly for small or short product groups
  • Feed system: Product-specific feed sytems (pusher, side conveyor belt)
